Surly Bikes

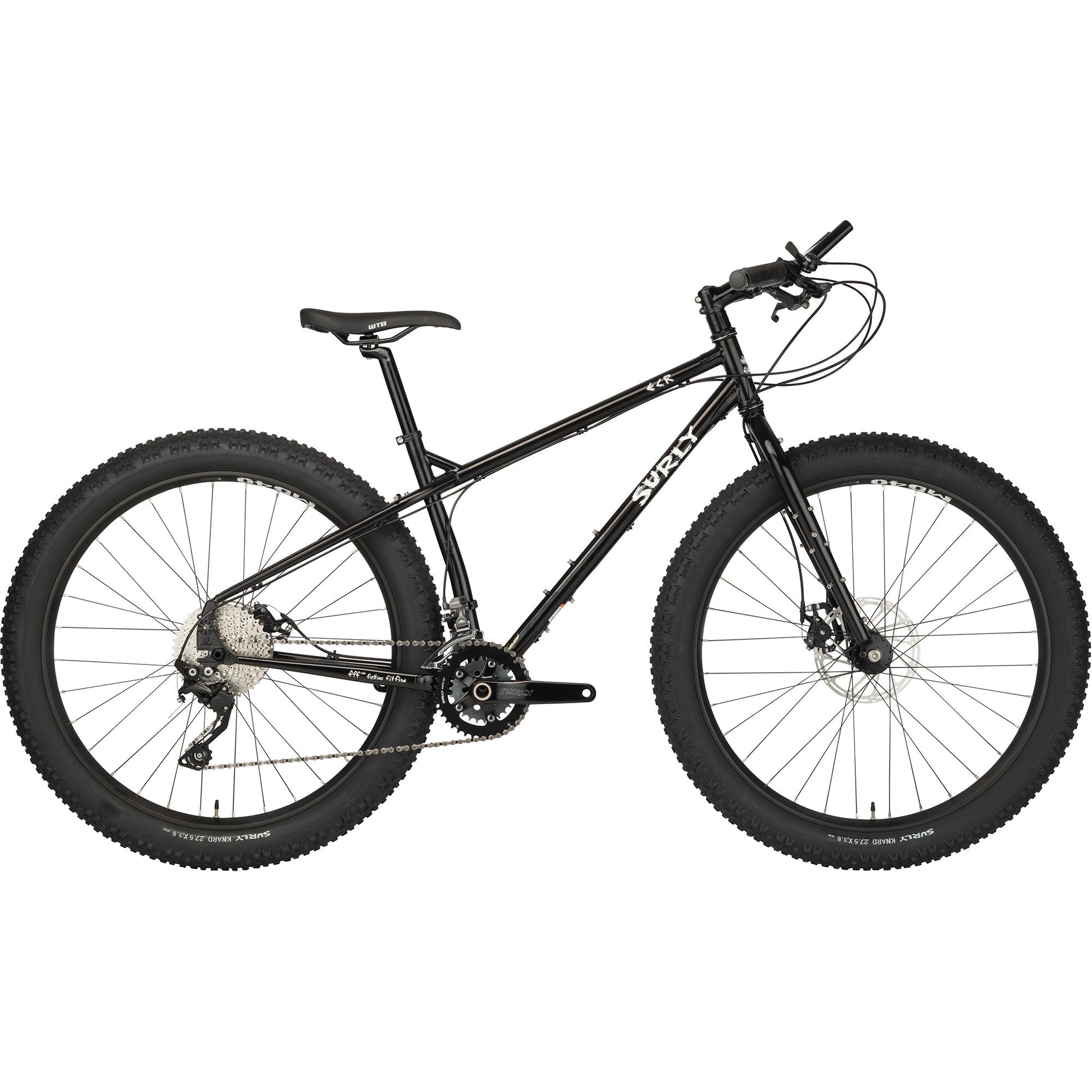

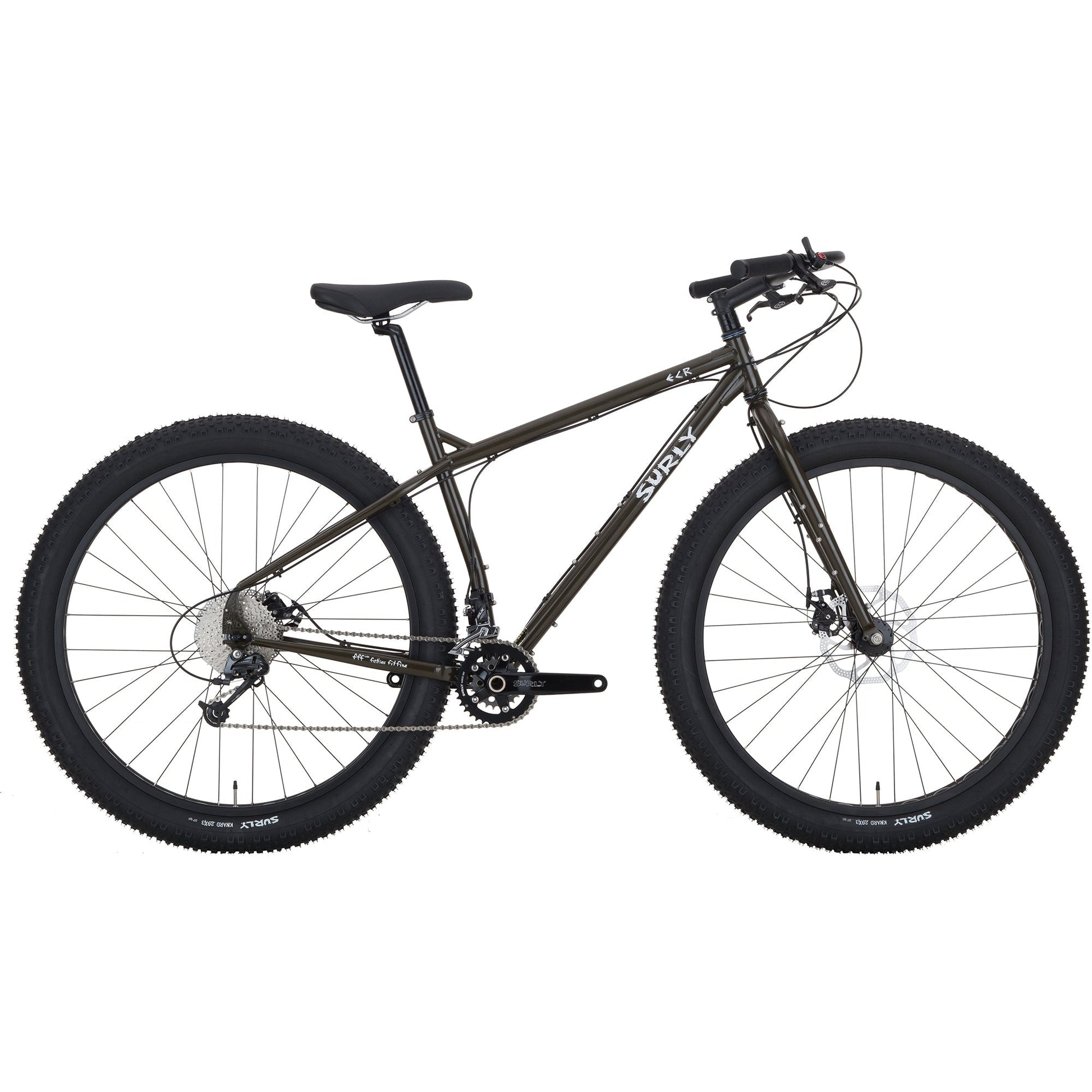

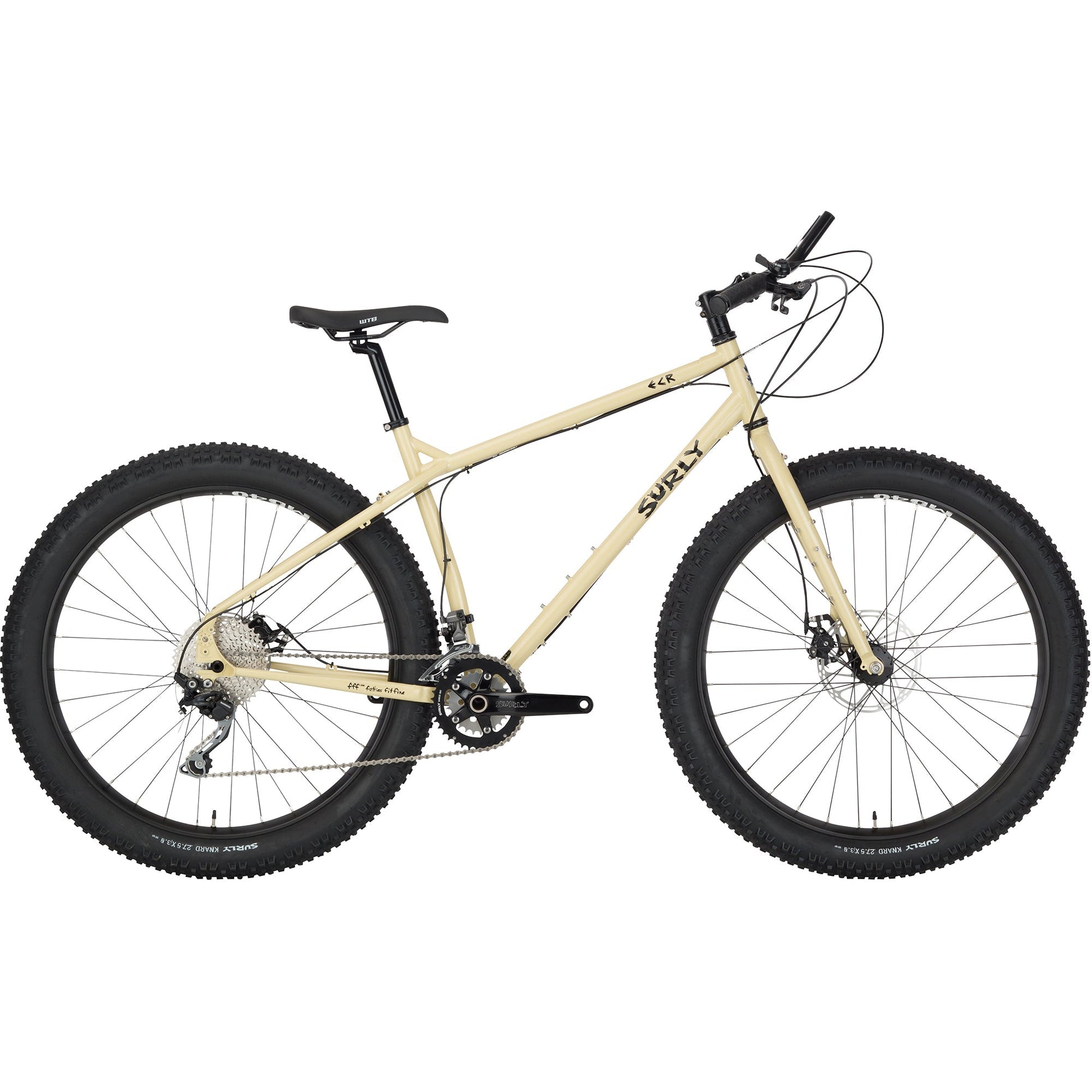

ECR
ECR
Regular price
$1,799.00 USD
Regular price
Sale price
$1,799.00 USD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
2014
| SIZE | xSmall (14) | Small (16) | Medium (18) | Large (20) | xLarge (22) | xxLarge (24) |
|---|---|---|---|---|---|---|
| Reach | 384.2 | 398.5 | 416.1 | 433.8 | 436.7 | 447.6 |
| Stack | 591.5 | 596.2 | 605.5 | 614.9 | 628.9 | 643.0 |
| Head Tube Angle | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° | 69.5° |
| Head Tube Length | 85.0 | 90.0 | 100.0 | 110.0 | 125.0 | 140.0 |
| Seat Tube Length | 356.5 | 406.4 | 457.2 | 508.0 | 558.8 | 609.6 |
| BB Drop | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 | 80.0 |
| Wheelbase | 1069.5 | 1085.5 | 1106.6 | 1127.8 | 1136.0 | 1152.2 |
| Chainstay Length | 451.0 | 451.0 | 451.0 | 451.0 | 451.0 | 451.0 |
| Top Tube Length, Actual | 542.0 | 547.4 | 562.8 | 582.4 | 597.2 | 618.3 |
| Top Tube Length, Effective | 560.0 | 575.0 | 595.0 | 615.0 | 630.0 | 645.0 |
| Seat Tube Angle | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| Standover Height | 717.6 | 753.4 | 789.0 | 822.7 | 855.7 | 889.0 |
| Fork Length | 468.0 | 468.0 | 468.0 | 468.0 | 468.0 | 468.0 |
| Fork Rake | 47.0 | 47.0 | 47.0 | 47.0 | 47.0 | 47.0 |
